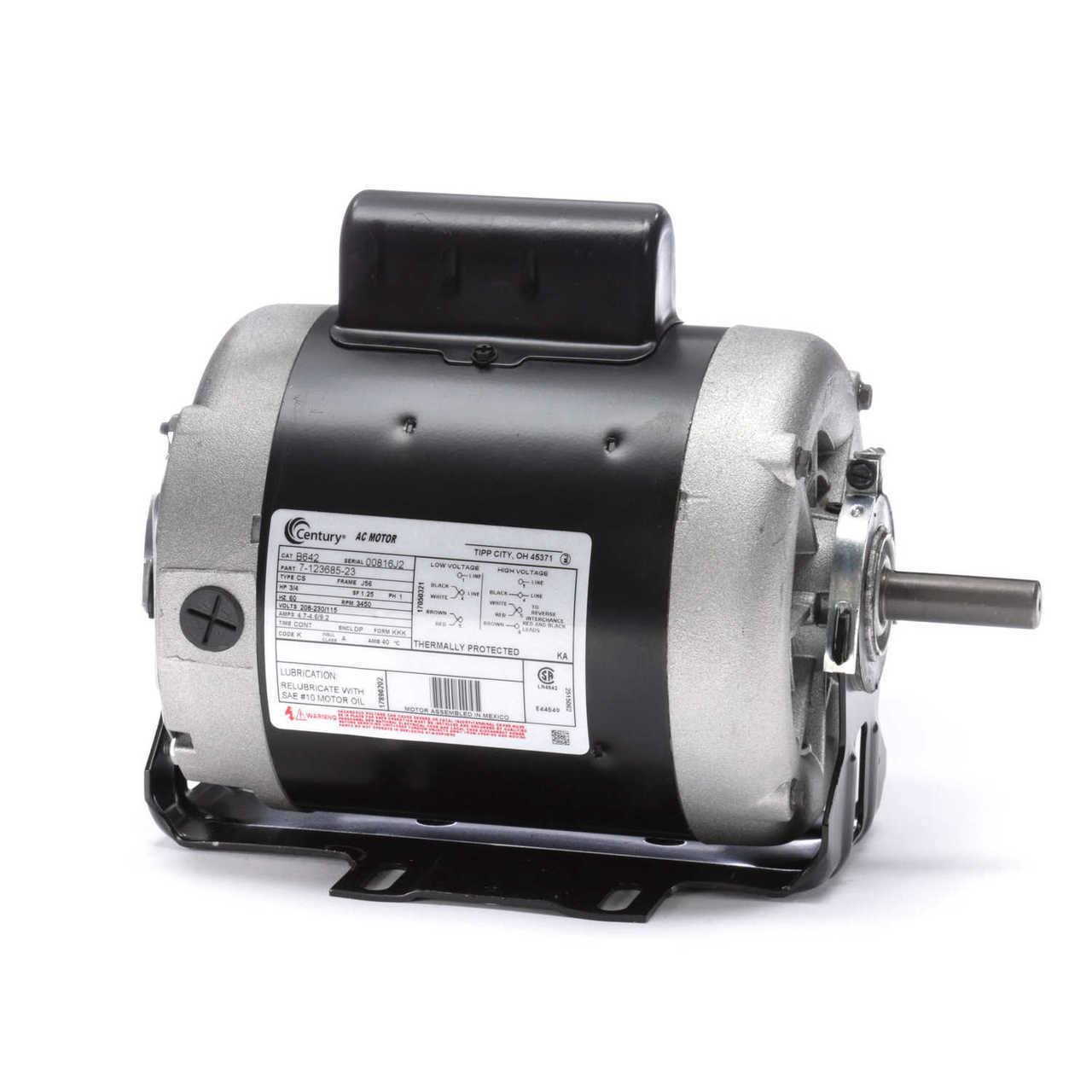

3/4 HP 3450 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor S1124
Sale price
$26.99
Regular price $103.82
Skip to product information
Belt Drive Motor, Motor Application HVAC/R, Motor Sub Application Belt Dr Fan/Blower, Motor Type Capacitor-Start, HP 3/4, Nameplate RPM 3450, Voltage 115/208-230, Frame 56, Enclosure Open Dripproof, Mounting Cradle, Hz 60, Full Load Amps 9.2/4.7-4.6, Thermal Protection Auto, Insulation Class A, Service Factor 1.25, Bearings Sleeve, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Shaft Dia. 5/8', Shaft Length 1-7/8', Length Less Shaft 9-3/16', Overall Length 11-1/16', Body Dia. 6-1/2', Nominal Efficiency 72.0%, Duty Continuous, RPM Range 3001-3600, Phase 1, Standards UL Recognized, CSA Certified
3/4 HP 3450 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor S1124
Sale price
$26.99
Regular price $103.82
Shipping calculated at checkout.
