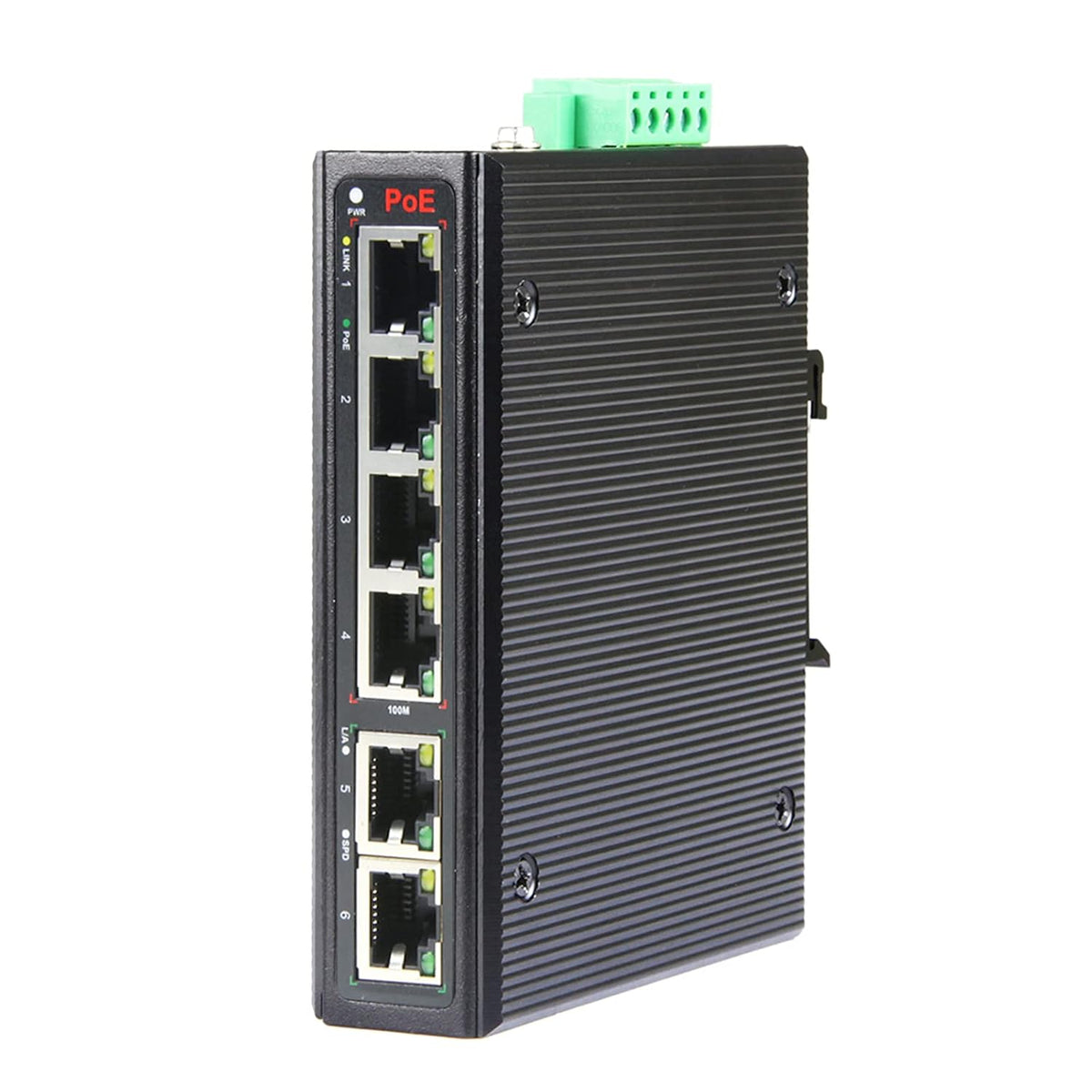

Industrial PoE Switch 6-Port Unmanaged with 4 PoE Ports and 2 Uplink Port T445
Industrial PoE Switch 6-Port Unmanaged with 4 PoE Ports and 2 Uplink Port T445
4x 10/100M PoE ports + 2x 10/100M Uplink ports.
All PoE ports support IEEE 802.3af or IEEE 802.3at. waterproof IP40, anti-dust, suitable for hard working environment.
*Unmanaged PoE switch, plug and play, no configuration, easy to use.Low power consumption, no fan mute design, galvanized steel metal casing.
*It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Industrial PoE Switch 6-port for wireless AP, IP Camera, VoIP, Unmanaged Switch with 4* PoE ports and 2* uplink port. 4x 10/100M PoE ports + 2x 10/100M Uplink ports. Interface Characteristics Fixed Port：4*10/100Base-T PoE port (Data/Power) 2*10/100Base-T uplink RJ45 ports (Data) Ethernet Port ：10/100Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. Twisted Pair Transmission：10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) Chip Parameter Network Protocol：IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x Forwarding Mode：Store and Forward(Full Wire Speed) Switching Capacity：16Gbps (Non-blocking) Forwarding Rate@64byte：8.93Mpps MAC：1K Buffer Memory：2M Jumbo Frame：10K LED Indicator：Power: PWR (green), data:Link,(yellow), PoE: PoE (green) Reset Switch：Yes, One-button factory reset PoE & Power Supply PoE Port：Port 1 to 4 IEEE802.3af/at @ POE Power Supply Pin：Default 1/2(+),3/6(-), Optional 4/5(+),7/8(-) Max Power Per Port：30W; IEEE802.3af/at Total PWR / Input Voltage：65W/(DC52V)： Power Consumption：Standby<5W, Full Load<65W Power Supply：External power supply Power Input: DC48-57V (Not included) Physical Parameter Operation TEMP / Humidity：-20~+55°C;5%~90% RH Non condensing Storage TEMP / Humidity：-40~+75°C;5%~95% RH Non condensing
