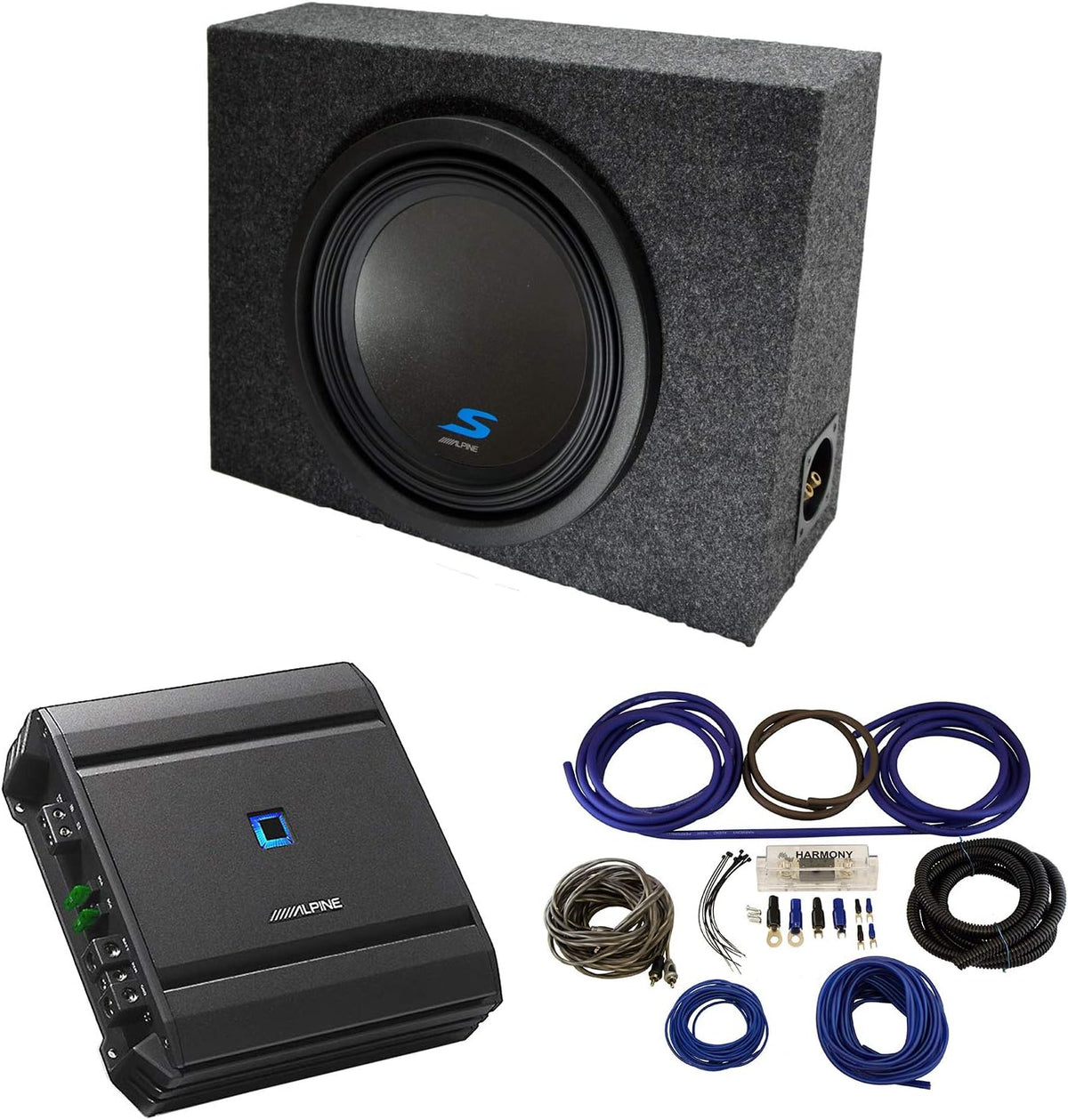

Single 12" Loaded Sub Box Enclosure O3359

This Package Includes the Following Items:

• 1 x Single 12" Subwoofer Regular Standard Cab Truck Sub Box Enclosure 5/8" MDF
• 1 x Alpine S-W12D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 12" Subwoofer

Single 12" Subwoofer Regular Standard Cab Truck Sub Box Enclosure 5/8" MDF:

• Single 12" Truck Sub Box
• • Mounting Depth: 5-5/16"
  • Air Space: 0.80 Cubic Feet
  • Sealed Enclosure
  • Dimensions: Width 20" x Height 15" x Depth One 5" x Depth Two 7-1/2"
• Designed to fit behind the seat most trucks
• Constructed with High Quality MDF
• High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
• High Quality Gray Carpet

Alpine S-W12D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 12" Subwoofer:

• General Features:
  • 12" 4 Ohm Type-S Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket
  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Top-mount depth: 5-1/16"
  • Cutout diameter: 10-9"
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 31 Hz
