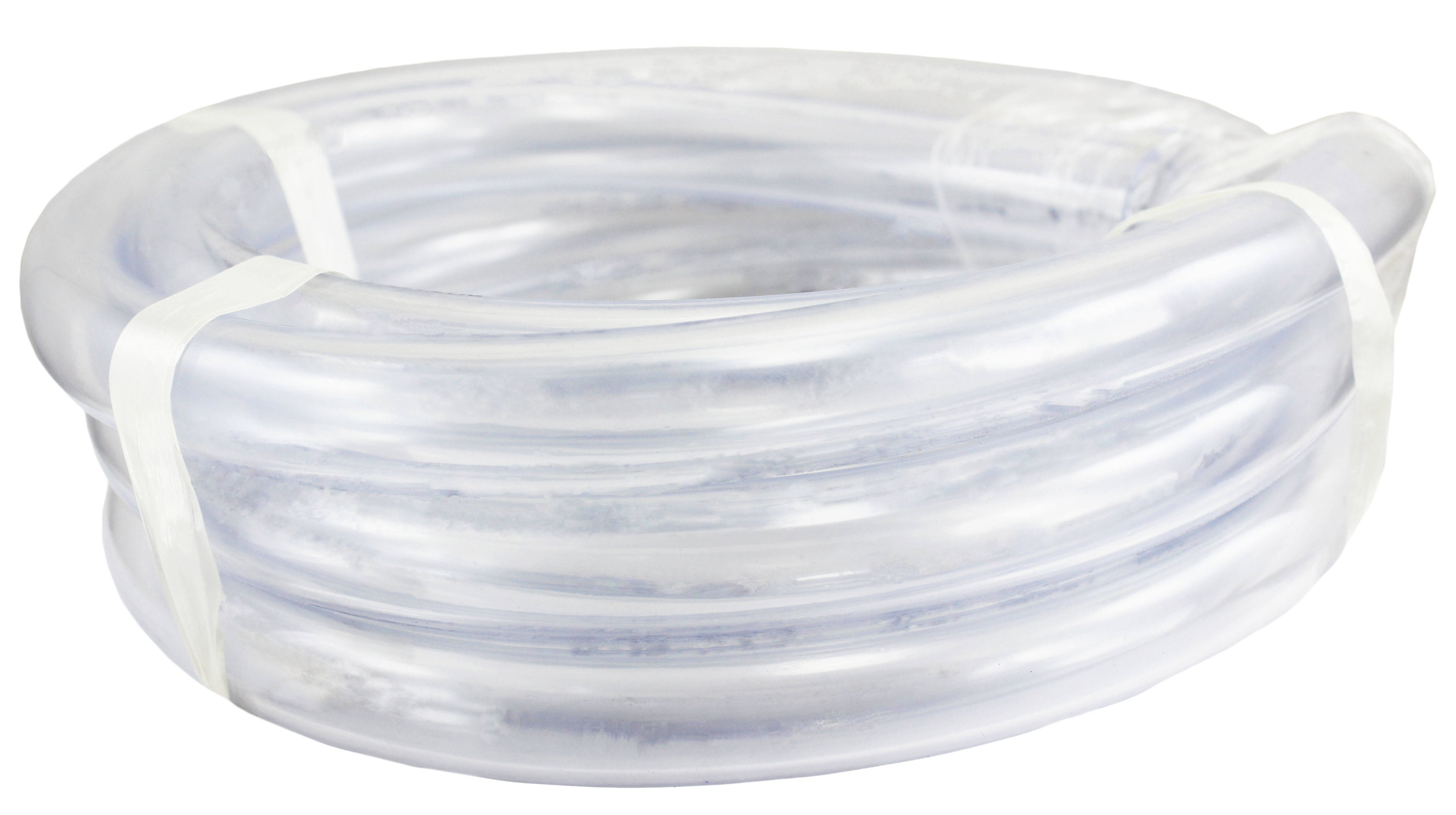

Clear PVC Tubing, 328 ft Roll, 1/2" ID x 5/8" OD O2238
Sale price
$16.99
Regular price $83.18
Skip to product information
Low Pressure Clear PVC Tubing by Duda Energy PVC tubing is a polyvinyl chloride plastic with plasticizers to make it more flexible and transparent. Clear PVC tubing is very flexible but low in strength, best for low pressure applications where bending or cost is of the greatest importance. The hose is non-toxic. Popular for many applications. Food grade PVC tubing uses DOTP (Dioctyl terephthalate) to make the hose flexible which is an organic compound and a non-phthalate plasticiser. Duda Energy Clear PVC Tubing Specifications Type: Low Pressure Clear PVC Tubing Material: PVC Shape: Single Line Reinforcement: None Color: Clear/Transparent Temperature Range: 25°F to 150°F (-4°C to 66°C) Durometer 67A (Soft) UV-Resistant Yes Duda Energy Clear PVC Tubing Application Data & Measurements Inner Diameter Outer Diameter Wall Thickness Max Working Pressure @70°F Bursting Pressure @70°F Bend Radius 1/8" (3.2mm) 1/4" (6.35mm) 1/16" (1.6mm) 60 psi 180 psi 1/4" 3/16" (4.8mm) 5/16" (7.9mm) 45 psi 135 psi 1/2" 1/4" (6.4mm) 3/8" (9.5mm) 35 psi 105 psi 1" 5/16" (7.9mm) 7/16" (11.1mm) 30 psi 90 psi 1-1/4" 3/8" (9.5mm) 1/2" (12.7mm) 20 psi 60 psi 1-3/4" 7/16" (11.1mm) 9/16" (14.3mm) 2-1/4" 1/2" (12.7mm) 5/8" (15.9mm) 2-3/4" 9/16" (14.3mm) 3/4" (19.05mm) 3/32" (2.4mm) 25 psi 75 psi 2-1/2" 5/8" (15.9mm) 13/16" (20.6mm) 20 psi 60 psi 3" 3/4" (19.1mm) 1" (25.4mm) 1/8" (3.2mm) 25 psi 75 psi
Clear PVC Tubing, 328 ft Roll, 1/2" ID x 5/8" OD O2238
Sale price
$16.99
Regular price $83.18
Shipping calculated at checkout.
