10CH 4K Network Video Recorder NVR Pack of 2 Z557
10CH 4K Network Video Recorder NVR Pack of 2 Z557
10 Channels 4K NVR - This 4K NVR recorder supports 10 channels 4K/5MP/4MP/3MP/2MP/1MP IP cameras, realtime live view and supports one Hard Drive Up to 8TB (Hard Drive Not Included);Dual HDMI and VGA output.
Wide Compatiblity - This NVR is full compatible with lookcctv IP Cameras for live view, motion detection etc.; Provides limited compatibility(live view) with third party IP cameras that compatible with open network video interface forum.

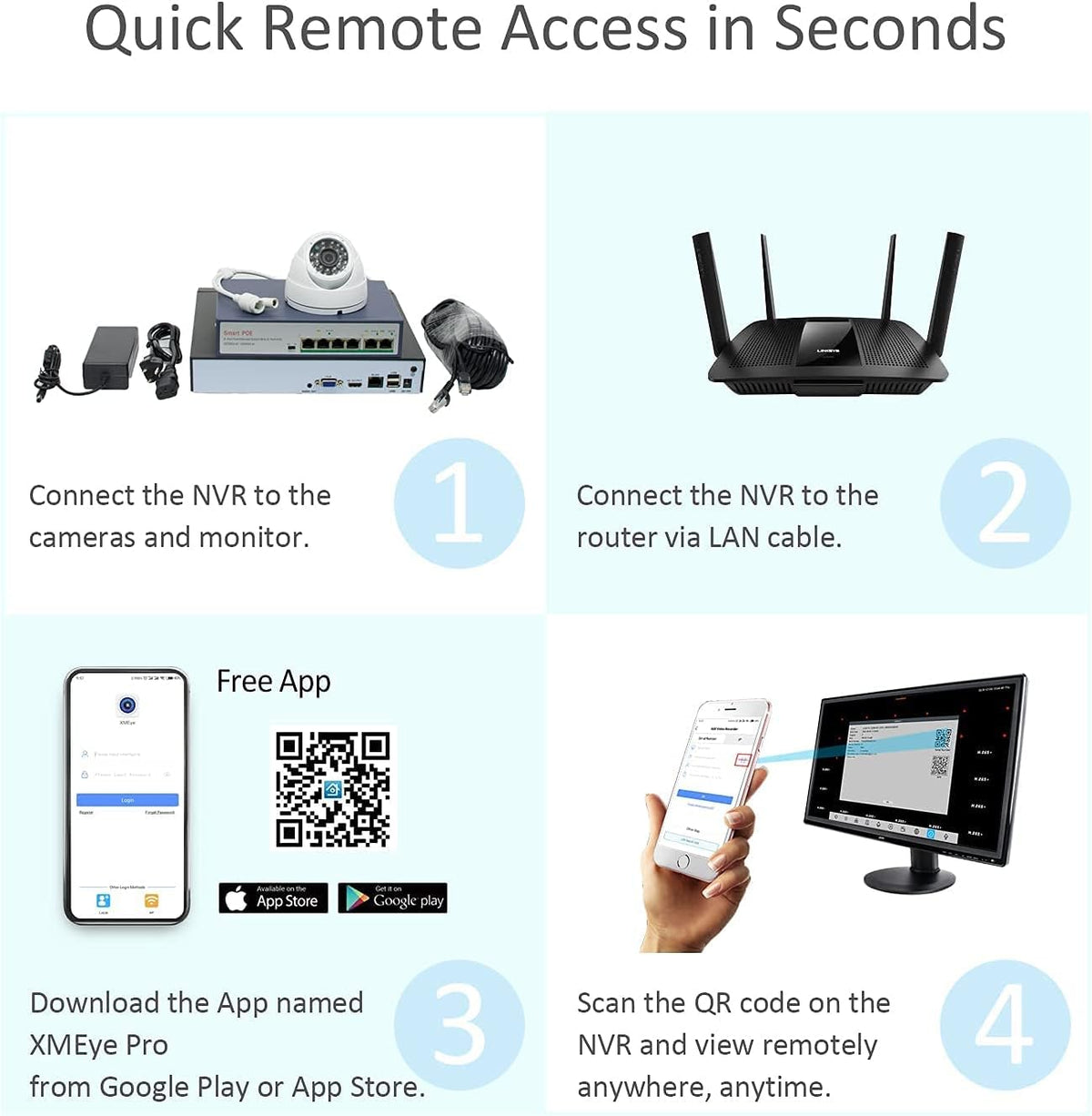

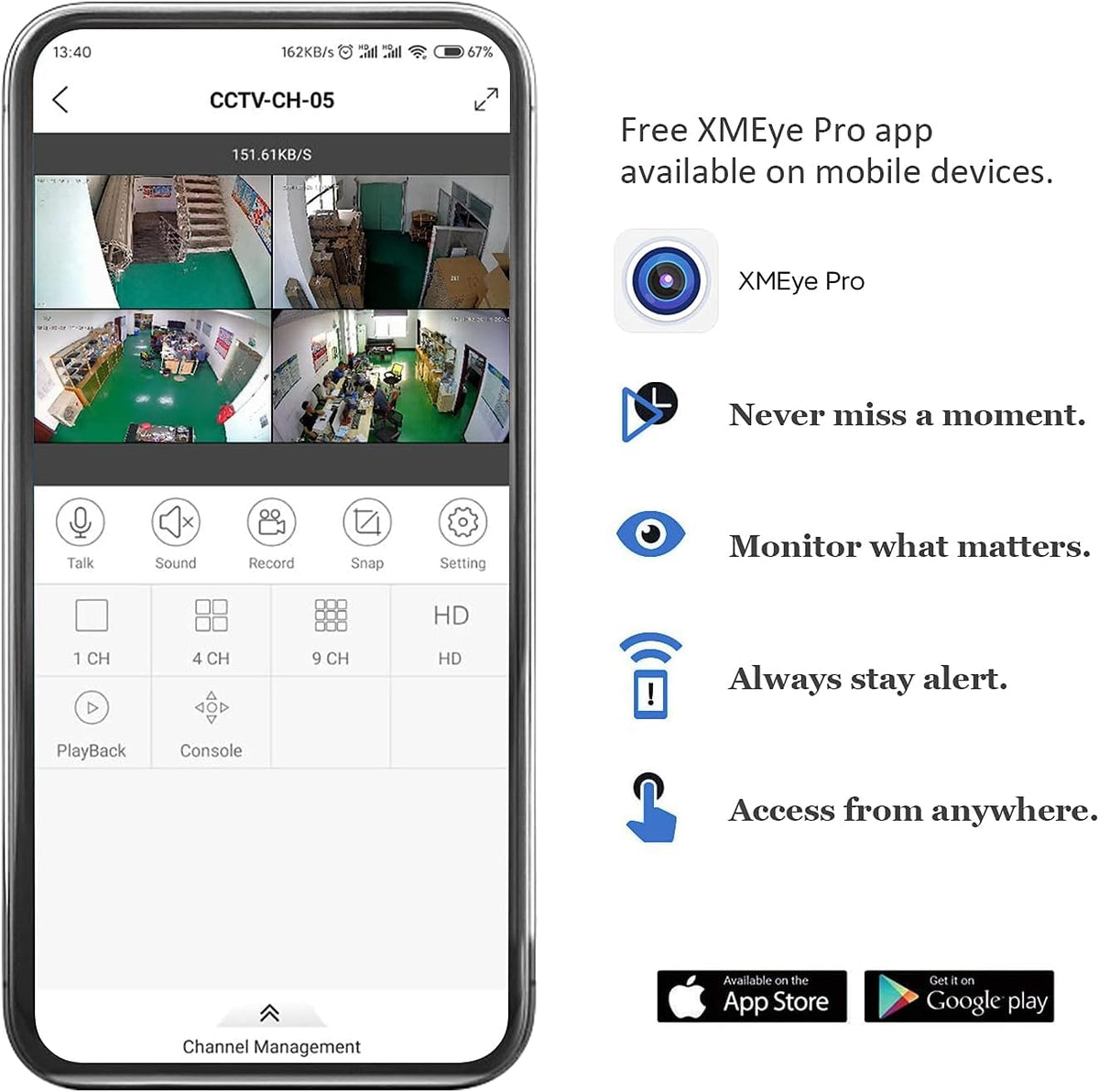

Local or Remote Access, Playback Anytime & Anywhere: View and control your security system locally by connecting the system to a monitor without internet, or via free VMS/CMS software on Windows or Mac, or via iOS & Android APP (Xmeye Pro ) on mobile devices remotely.You can also playback significant evidence or funny videos records by searching different days, hours or minutes
Multiple Recording/Playback Modes: You can customize your NVR with different recording modes including manual, schedule and motion detection（motion detection is only available with lookcctv IP camera or NetIP IP camera）. Various playback modes like event, tag and smart mode, are also available.
Please Note -- An internal hard disk drive is required; it can't record or playback without hard drive. Please buy the hard drive separately,it is not support record to USB disk.You can backup record file from hard disk to USB disk. This NVR does not include hard drive and remote control!
-Lookcctv 10 Channels security network video recorder system is compatible with 720p/1080p/3MP/4MP/5MP/4K IP cameras.
-Desktop/Laptop client. With included CMS/VMS software, you can use your Windows or Mac computer to view, save or playback footage.
-Multiple Recording/Playback customization options. You can customize your NVR with different recording modes including manual, schedule and motion.
-Motion detection alert and App push functions are fully available with Lookcctv(or XM solution) IP Cameras. For other third party brand Open Network Video Interface Forum IP cameras, live view is supported.
Specifications:
Video input : 10ch 4K
Video output : 1ch HD output(max 4K)/1ch VGA(max 1080P)
Audio input/output : No audio input/1ch audio output(3.5MM audio output)
Video compression standard : H.265
Preview quality : 10ch*4K
Playback quality : 4K/5M/4M/3M/1080P
Record Mode : Manual/Alarm/Motion detection/Timing
Back up mode : Network backup/USB hard disk/USB burner/SATA burner
Video Standard : PAL/NTSC
HDD Capacity : 1 SATA port(hard disk supports up to 8TB )
Network Interface : 1 RJ45 10M/100M adaptive Ethernet port
USB Port : 2 USB 2.0 port
Power Supply: DC12V/2A
Package Content:
1x CCTV NVR
1x DC 12V/2A Power Supply
1x USB Mouse
1x Manual
IMPORTANT NOTICE:
1.A hard drive is NOT INCLUDED. You must separately purchase one with a capacity of your choice up to 8TB in size.
2.IP Cameras are NOT INCLUDED and are sold separately.
3.Use only IP Cameras of equal or LOWER resolution than the maximum supported resolution of the NVR.
4.Default login user name is admin,you must be set password for device ,Otherwise you can not access to system.
5.Any installtion or set up problems,Please contact tech email(in the user manual) for help first.
